Erg Chech 002 (ungrouped)

Erg Chech 002 (EC 002)        26.032°N, 1.611°W

Adrar, Algeria

Find: 2020-May

Classification: Ungrouped achondrite

History: Numerous stones containing distinctive large greenish crystals were found in May 2020 at 26.032°N, 1.611°W near Bir Ben Takoul, southern Algeria within the Erg Chech sand sea.  Three of these stones (weighing 1839 g, 467 g and 207 g) were obtained by Rachid Chaoui, and two of them were subsequently purchased by Mark Lyon and one by Jason Utas. Additional stones (110 g, 355 g, 408 g, 480 g, 750 g, 805 g, 1175 g, 1857 g, 2647 g, 3485 g, 4130 g, 4140 g) were purchased in June and July 2020 from different Moroccan dealers by Ben Hoefnagels, Eric Twelker, Luc Labenne, Vincent Jacques, Ziyao Wang, Michael Farmer and Aziz Habibi.

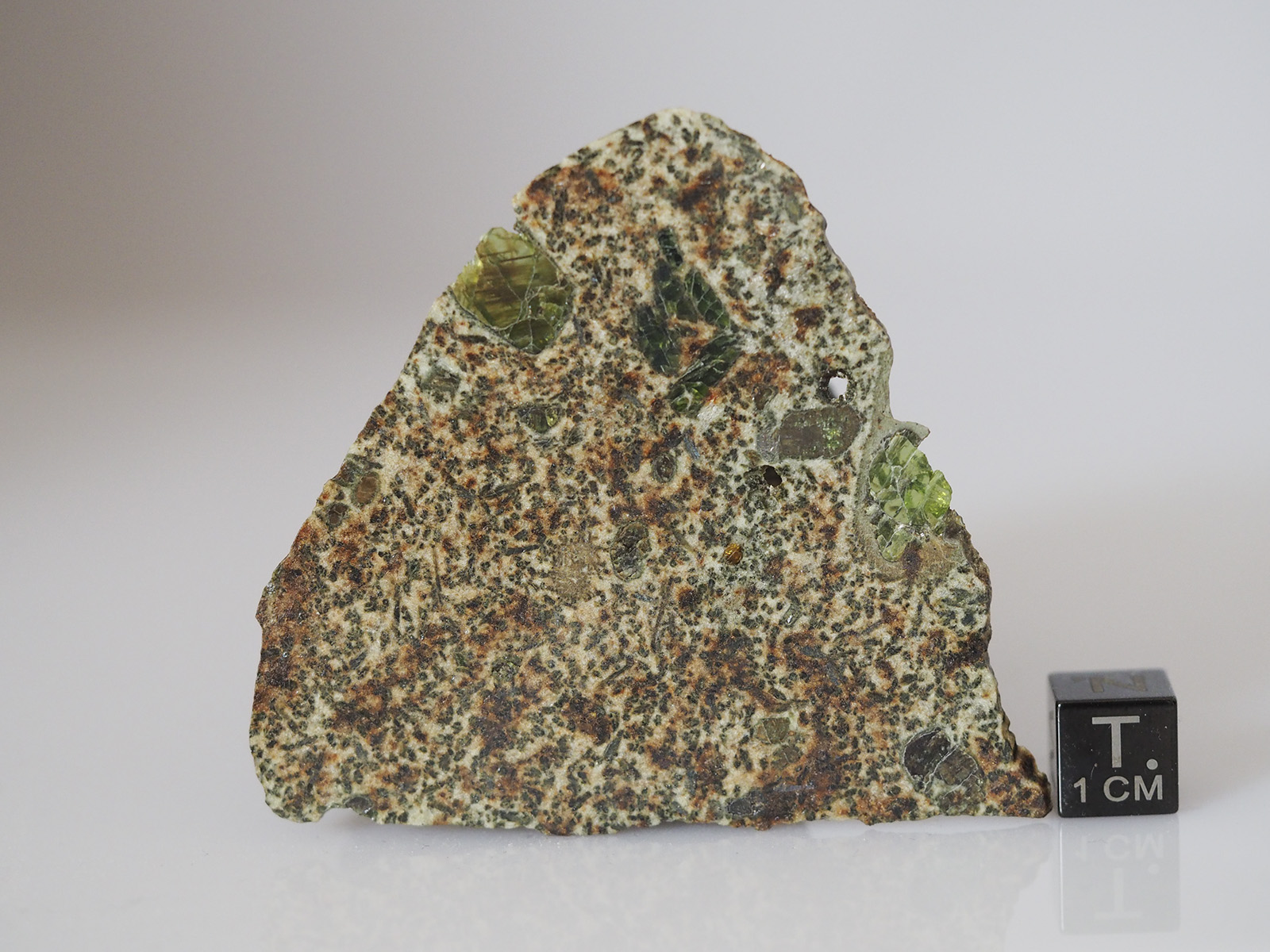

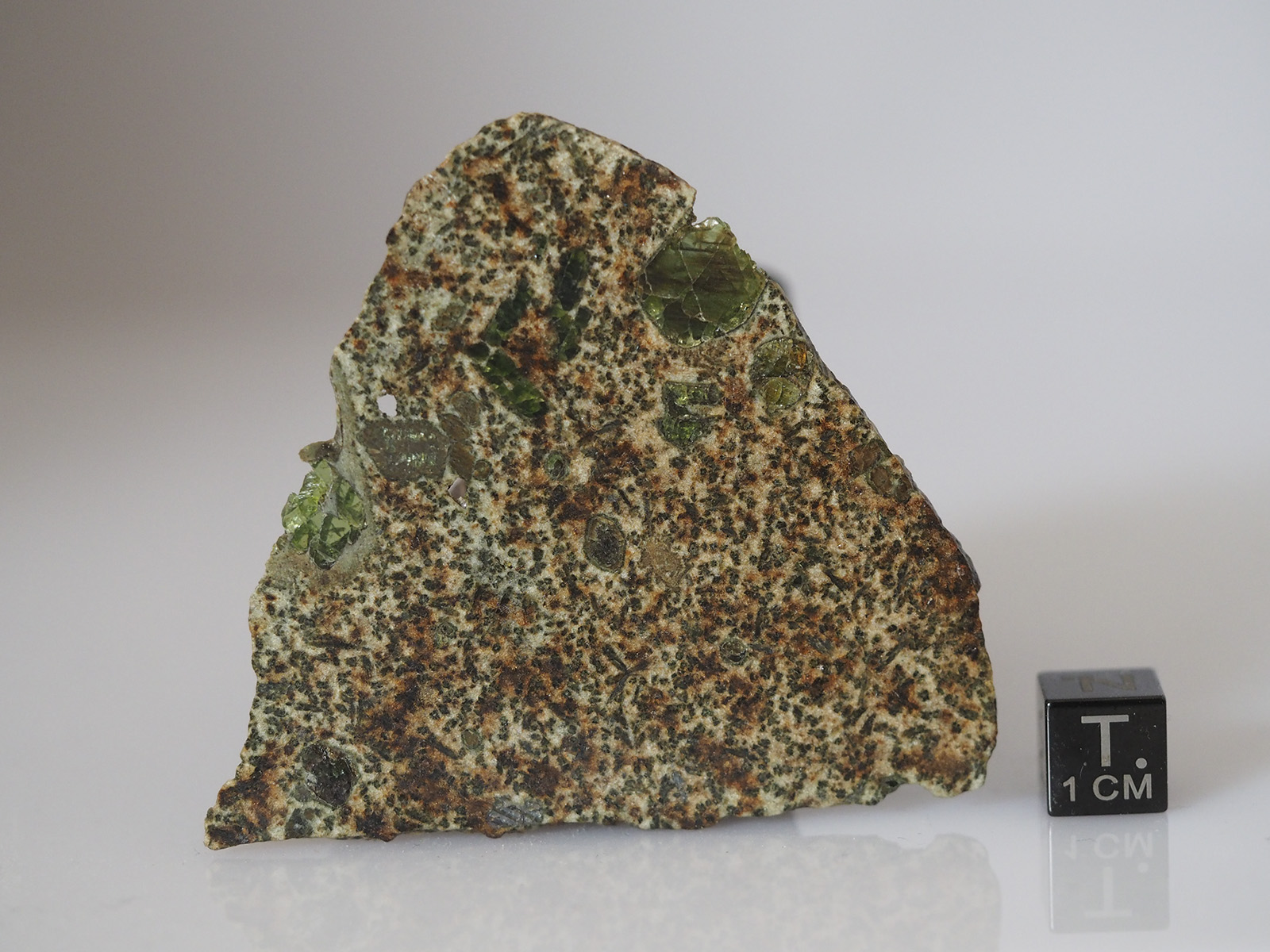

Physical characteristics: The stones under classification (combined weight 22,855 g) lack fusion crust, and have an overall relatively coarse grained, tan and beige appearance with sporadic larger green, yellow-green and less commonly yellow-brown crystals (up to 9 cm by 4 cm in some specimens). Some minor reddish-brown staining is evident in the groundmass regions. This classification is based on direct analysis of samples from the 1839 g stone augmented by examination of photographs and descriptions of other stones found with them.

Petrography: (A. Irving, UWS and P. Carpenter, WUSL) Unbrecciated igneous texture. Sporadic pyroxene megacrysts (ranging in size from 1.7 to 11.5 mm in the studied thin section), exhibiting angular or ellipsoidal and embayed shapes, and comprising orthopyroxene (of varying composition), pigeonite and augite occur within a dominant, medium to relatively coarse grained groundmass. The cores of each of the analyzed megacrysts are fairly homogeneous in composition, but all are mantled by zones of different composition and distinct, fine grained rim overgrowths against the groundmass parallel to grain outlines (irrespective of geometry). Some low-Ca pyroxene cores contain thin lamellae and some larger inclusions (up to 300 µm) of Ti-poor chromite. The groundmass representing the major portion of the specimens (mean grainsize ~1.5 mm) is composed predominantly of exsolved pigeonite (commonly as radiating clusters of prismatic grains) and lath-like sodic plagioclase (zoned from irregular oligoclase cores to albitic rims with oriented dagger-like K-feldspar exsolution blades) together with accessory Ti-chromite, ilmenite (some as rims on chromite), troilite, silica polymorph (with a curved “fish-scale” fracture pattern suggestive of cristobalite), merrillite, and rare Ni-poor metal (in composite grain clusters with ilmenite, Ti-chromite and troilite). Secondary weathering products include minor goethite after primary troilite and metal, and sporadic very thin veinlets of calcite.

Geochemistry: Orthopyroxene megacryst #1 (core Fs_17.7Wo_3.3; mantle Fs_23.4-31.1Wo_3.4-3.8; rim Fs_37.6-42.5Wo_2.9-3.3; FeO/MnO = 21-26, Cr₂O₃ = 0.3-0.5 wt.%; N = 6), orthopyroxene megacryst #2 (core Fs_14.4±0.0Wo_2.2-2.3; mantle Fs_19.2-28.7Wo_2.0-2.1; rim Fs_33.1-36.8Wo_2.8-3.5; FeO/MnO = 17-26; Cr₂O₃ = 0.3-1.0 wt.%; N = 7), orthopyroxene megacryst #3 (core Fs_22.8Wo_1.2; mantle Fs_30.8Wo_2.2; rim Fs_43.5Wo_2.5; FeO/MnO = 16-23; Cr₂O₃ = 0.2-0.4 wt.%; N = 3), pigeonite megacryst (core Fs_21.3Wo_7.0; mantle Fs_23.4Wo_11.8; rim Fs_40.7Wo_5.0; FeO/MnO = 17-20; Cr₂O₃ = 0.3-0.8 wt.%; N = 3), augite megacryst (core Fs_14.7-19.4Wo_38.5-30.2; rim Fs_24.7Wo_38.1; FeO/MnO = 15-18; Cr₂O₃ = 1.1 wt.%; N = 4), groundmass exsolved pigeonite (low-Ca pyroxene host Fs_42.3-52.2Wo_2.9-4.6, FeO/MnO = 21-23, N = 6; augite exsolution lamellae Fs_18.1-25.9Wo_40.8-38.1, FeO/MnO = 18-22, N = 5), groundmass plagioclase (oligoclase cores and intergrown with pyroxene megacrysts Ab_68.8-79.0An_26.7-17.9Or_4.4-2.6, N = 6; albitic rims on laths Ab_84.4-86.7An_11.4-7.1Or_4.2-7.0, N = 5), K-feldspar exsolution blade in albite (Or_84.1Ab_11.3An_4.6), Fe metal (Ni = 0.13-0.18 wt.%, N = 2). Oxygen isotopes (K. Ziegler, UNM): analyses of acid-washed subsamples of groundmass and an orthopyroxene megacryst by laser fluorination gave, respectively: groundmass δ¹⁷O 1.548, 1.788, 1.831, 1.773; δ¹⁸O 3.201, 3.657, 3.728, 3.593; Δ¹⁷O -0.142, -0.143, -0.137, -0.123 (linearized, all per mil, TFL slope = 0.528); megacryst δ¹⁷O 1.780, 1.639, 1.682; δ¹⁸O 3.594, 3.329, 3.379; Δ¹⁷O -0.117, -0.119, -0.103 (linearized, all per mil, TFL slope = 0.528). Magnetic susceptibility log χ (× 10^-9 m³/kg) = 3.06.

Classification: Achondrite (ungrouped, gabbroic with pyroxene megacrysts, sodic). Although the exsolved pigeonite in this meteorite is reminiscent of pyroxene in typical eucrites (with the notable exception of systematically much lower FeO/MnO ratios), the highly sodic and mildly potassic plagioclase is very different from the much more calcic plagioclase in eucrites (typically bytownite to anorthite, and only rarely as sodic as calcic labradorite Ab₃₃An₆₇). The cores of orthopyroxene megacrysts differ from typical diogenitic orthopyroxene in usually being more magnesian, more Cr-rich and having lower FeO/MnO ratios. Oxygen isotopes (Δ¹⁷O values) plot between the field for the majority of eucrites and the trend for angrites, in the vicinity of values for anomalous eucrites Bunburra Rockhole, Emmaville, Asuka 881394 and EET 92023. However, Erg Chech 002 is mineralogically quite different from those four meteorites in many respects, most notably the prevalence of highly sodic plagioclase and lower FeO/MnO ratios in pyroxenes.

Specimens: 50.1 g including one polished thin section and one polished mount at UWB; main mass of the 1839 g stone and the 207 g stone with Mr. M. Lyon; 467 g stone with Mr. J. Utas; 110 g stone with Mr. E. Twelker; 4140 g stone, 355 g stone and main mass of 408 g stone with Mr. B. Hoefnagels; 480 g stone with Mr. L. Labenne; 4130 g stone with Mr. V. Jacques; 805 g stone with Mr. Ziyao Wang; 1857 g stone with Mr. S. Jurvetson; 2647 g stone with Mr. T. Boudreaux; 1175 g and 3485 g stones with Farmer; 750 g with Mr. A. Habibi.
